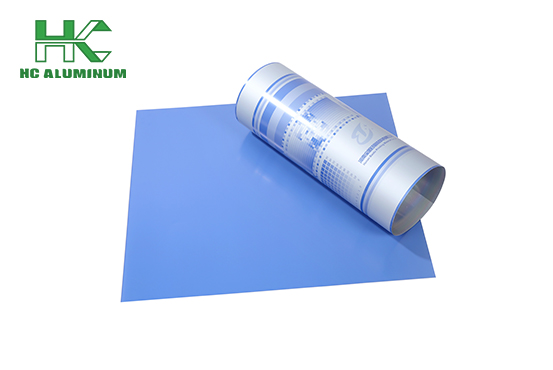

CTCP Plate

Our CTCP plates adopt brand-new UV-sensitive layer formula and high-quality aluminum sheet,bringing superior wear resistance and accurate dot reproduction. Learn more.

Brand-new UV-sensitive layer formula
High-quality electrolytically oxidized aluminum plate base.
Accurate dot reproduction
Excellent water-ink balance performance
Superior wear resistance
High resolution and good storage stability
Good adaptability to developer
It is suitable for mainstream UV-CTP platemaking equipment in the market.
High-sensitivity plates bring greater production efficiency.
Superior chemical resistance

duraseal slider1

Item 0

Specifications

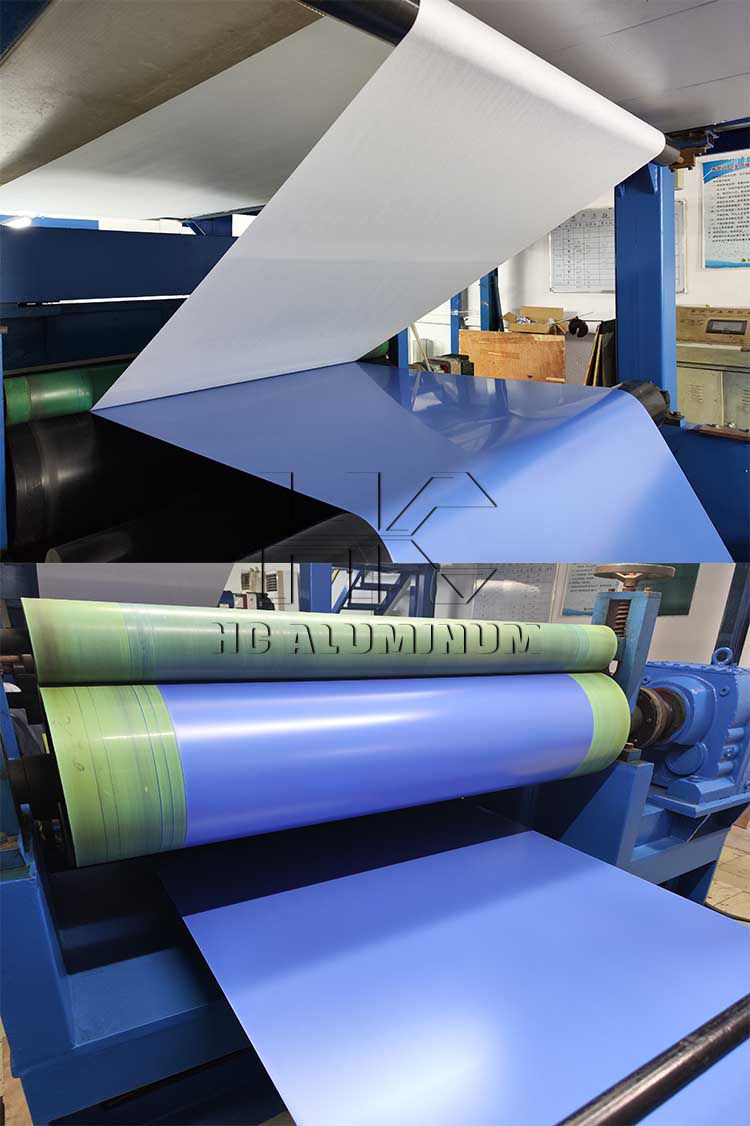

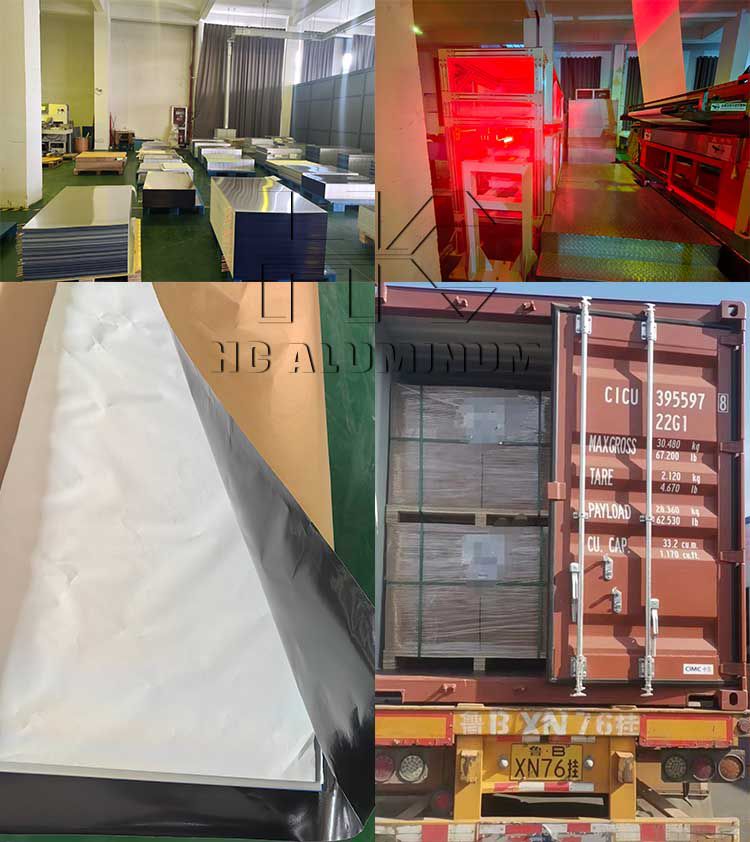

Factory Show

Packaging

Download

What is CTCP value for printers

CTCP images digital information on ordinary PS plates. CTCP equipment is suitable for all medium-sized or larger printing companies. If a printing plant has two four-color printing presses and an annual plate consumption of 30,000 square meters, which most printing plants can achieve, the return on investment of CTCP equipment will be as high as 70-80%. For printing presses with more short-run printing works or professional plate-making centers, the return on investment of CTCP will be even higher!

Features of CTCP printing plates

Plate type	CTCP plate
Usage	Offset printing, digital printing
Style	Positive
Thickness	0.15mm,0.20mm,0.25mm,0.30mm,0.40mm
Spectral sensitivity	410nm
Exposure energy	50-60Mj/Cm2
Developing temperature	23+/-2degree
Resolution	2~98%at200lpi
Developing time	30-40s
Run length	50000-100000impressions
Shelf time	18 months
Transportation Package	Export standard,seaworthy package
Specification	0.15mm100PCS/box;0.25mm50PCS/box;0.30mm50PCS/box; 0.40mm30PCX/box;customized
Origin	China
